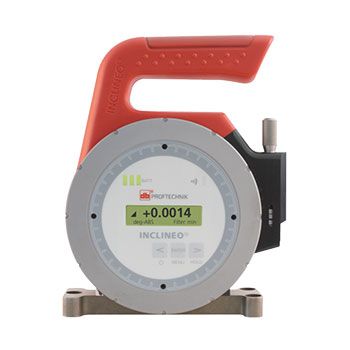

INCLINEO is a powerful system based on a high precision electronic inclinometer technology.
It measures angularity at different positions on a surface enabling exact profile determination of machined surfaces. In combination with easy-to-mount bracketing, it measures the inclination along edges, rails and even on vertical shafts.
Its rotatable housing makes it possible to take measurements at any angular position, even top down. The integrated wireless technology, combined with its easy operation makes INCLINEO versatile, ensuring flexibility during measurements and making it an effective tool for installations and services.
Thanks to an innovative design that permits the housing to be rotated through 360°, INCLINEO is readily adjustable to measure surfaces of any inclination. INCLINEO can be used as a stand-alone or in combination with the ALIGNMENT CENTER PC software to accomplish a wide range of measurement tasks.
Different measurement setups are provided:
Whether the surface is level or steep, be it shafts or rolls, with or without large gaps, PRÜFTECHNIK provides the right bracketing for a variety of applications.
Used in combination with the ALIGNMENT CENTER PC software, INCLINEO measures surface flatness of engine blocks, compressor frames or machine bases quickly and easily.
The INCLINEO absolute measurement is used to determine foundation levelness
Straightness and parallelism
Straightness is measured by taking points along a line. The “Group” function within the software enables the evaluation of parallelism of the rails.
The instrument’s high precision makes it ideal for measuring machine geometries, especially for quality control.
In calculating shaft plumbness, INCLINEO® compares two measurements taken at opposite shaft positions. Depending on the application, this is done by either rotating the shaft or positioning INCLINEO at the two opposite sides.
Extend range base
The extend range base makes it possible to measure over large gaps. Its offset adjustment makes it suitable for a variety of application lengths.
The magnetic foot is designed to provide maximum stability even on steep surfaces. Its construction ensures that parallelism to shaft or roll axis is maintained.
INCLINEO technical data
|Limits of error at calibration [Ta =22°C]||
0.005% full scale
0.03% read out
|Limits of error at measurement [Ta =22°C] until 6 months of calibration||
0.005% full scale
0.06% read out
|Limits of error at measurement [Ta =22°C] until 12 months of calibration||
0.005% full scale
0.12% read out
|8-hour zero-point drift||0.04% full scale|
|Digital Filter/Average||3rd order with 0.3 / 1 / 3 Hz options|
Storage: -40°C to 85°C
Operation: -10°C to 60°C
LCD display, 132 x 32 pixel
with LED backlight
|User interface||Three key operation|
|Wireless communication||Embedded RF module with LED indicator|
RS-232 (serial) for computer and sensor;
Connector for dial gauge
|Power supply||2 AA batteries|
|Battery status indicator||3 LEDs|
|Data storage||up to 999 measurements
