Ultraprobe® 9000

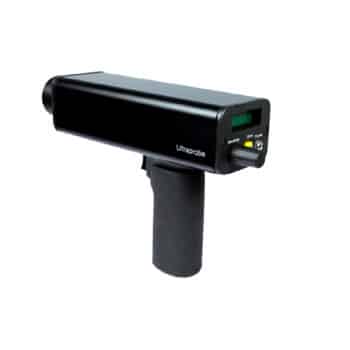

The Ultraprobe 9000 Kit Complete is a digital ultrasonic inspection, information storage and retrieval system that is so versatile, so easy (most operators are able to use the Ultraprobe 9000 within 15 minutes of purchase) and so much fun to operate, you’ll be looking for opportunities to use it every day.

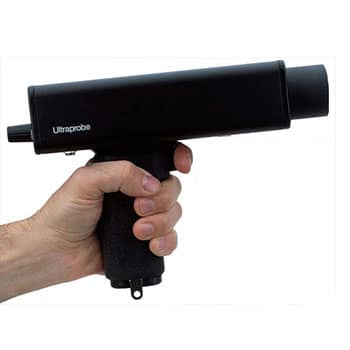

From the very instant you hold the Ultraprobe 9000 Ultrasonic Inspection System in your hand, the feel of the well balanced pistol grip, the elegance of simplicity, and the clarity of signal will convince you that this is truly a remarkable feat of engineering. This Ultraprobe is ready to unleash the potential of any inspection program.

Your first glance at the easy to read display panel shows you something special. You can see the calibrated decibel readout and a 16 segment bar graph which instantly registers sound intensity changes and simultaneously registers peak hold as you scan.

Key features

Additional Info

The Ultraprobe® 9000 is a digital ultrasonic inspection, information, storage and retrieval system that’s versatile and easy to use (most oper­ators learn within 15 minutes!). This Ultraprobe will help move you through inspections quickly.  Whether used for trouble-shooting or a pre-planned  route, data is easily viewed on the display panel and stored with the push of a button. The easy-to-read  display panel offers calibrated decibel readout and a 16-segment bar graph, which instantly registers sound intensity changes and simultaneously registers peak hold as you scan

The Ultraprobe 9000 engineering combines best of both worlds:

  • Scans as quickly as with analog instruments
  • Uses the digital information to store and trend

On board data logging utilizing Ultratrend OMS™ (Data Management System) provides:

  • Multiple data views
  • History table/spread sheets
  • Trend charts
  • Export files to MS Excel
  • Flexibility as never before!


  • Interchangeable Modules
  • Acoustic Isolating Headphones
  • Environmentally Friendly Rechargeable Batteries
  • Easy Interface for Most Vibration Analyzers
  • Spin and Click™ Technology – just by “spinning” and “clicking” you can:
    • Locate and Identify Potential Problems
    • Store Data
    • Change Frequency Quickly
    • Change Sensitivity Quickly
    • Download via USB Output
    • Select “Snap Shot”, “Peak Hold” , “Real Time” …and More!​


Technical specifications

  • Construction – Hand-held pistol type made with coated aluminum and ABS plastic
  • Circuitry – Solid State Analog and SMD Digital Circuitry with temperature compensation
  • Frequency Range – 20 kHz to 100 kHz (tunable in 1 kHz increments)
  • Response Time –
  • Display – 16 x 2 LCD with LED Backlight
  • Memory – 400 storage locations
  • Battery – NiMH Rechargable
  • Operating Temperature – 32° Farenheit to 122° Farenheit (0° Celcius to 50° Celcius)
  • Output(s) – Calibrated heterodyned output, decibel (dB) frequency, USB data output
  • Probes – Trisonic Scanning Module and Stethoscope Module
  • Headset – Deluxe noise attenuating headphones. Over 23 dB of noise attenuation. Meets or exceeds ANSI specifications and OSHA standards.
  • Indicators – dB, Frequency, Battery Status, and 16 Segment Bar Graph
  • Sensitivity – Detects .005″ (.127 mm) diameter leak @ 5 psi (.34 bar) at a distance of 50 feet (15.24m)
  • Threshold – 1 x 10-2 std. cc/sec to 1 x 10-3 std. cc/sec
  • Dimensions – Complete kit in zero aluminum carrying case 15″ x 22″ x 7″ (38.1 x 55.9 x 17.8 cm)
  • Weight – Pistol Unit –  2 lbs. (.9 kg) Complete carrying case –  14 lbs. (6.4 kg)
  • Warranty – 1 year parts/labor standard, 5 years with returned completed warranty registration
  • Display Modes – Real Time, Peak Hold, and Snap Shot
  • dB Measurement – Relative or Offset
  • Covered by one or more of the following patents – 4416145, EPO151115, 502674183
