DM166

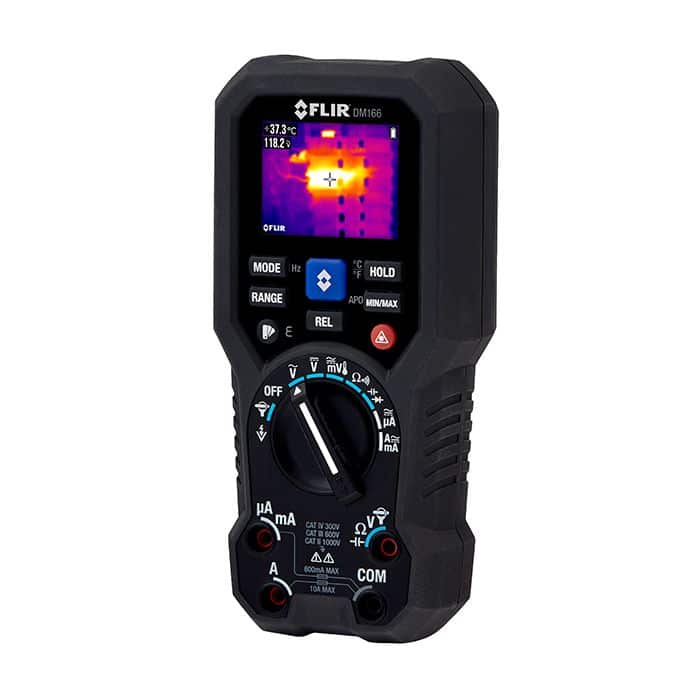

The FLIR DM166 is the most affordable multimeter with built-in thermal imaging – a must-have tool for commercial electricians, automation, electronics, and HVAC technicians.

Featuring Infrared Guided Measurement (IGMTM) powered by an 80 x 60 FLIR thermal imager, the DM166 visually guides you to the precise location of temperature anomalies and potential problems faster, more safely, and efficiently. The feature-packed multimeter is an ideal tool for troubleshooting and diagnosing complex issues in both high-voltage and low-voltage applications

Specifications


Overview
IR Resolution: 60 × 80 pixels (4,800 pixels)
Warranty: 10 yrs on product and detector

Environmental
Drop test: 3 m
IP Rating: IP40

Imaging & Optical
Focus: Fixed
Thermal image palettes: Rainbow, iron, gray scale

Measurement & Analysis
AC/DC mAmps: Range: 600.0 mA Basic Accuracy: ±1.0% / ±0.7%
AC/DC microAmps: Range: 4000 µA Basic Accuracy: ±1.5%
AC/DC mVolt: Range: 600.0 mV Basic Accuracy: ±1% / ±0.5%
AC/DC Voltage: Range: 600.0 V Basic Accuracy: ±0.7% / ±0.5%
Capacitance: Range: Basic Accuracy: 200.0 nF ±1.5% 200.0 µF ±1.5% 2.000 mF ±2.0% 10.00 mF ±5.0%
Diode Test: Range: 3.000 V Basic Accuracy: ±0.9%
Frequency Range: Range: 99.99 kHz Basic Accuracy: ±1.0%
Resistance: Range: Basic Accuracy: 600.0 Ω ±0.3% 600.0 kΩ ±0.5% 6.000 MΩ ±0.9% 60.00 MΩ ±1.5%
Temperature Range: –10 to 150°C (14 to 302°F)
Thermocouple: –40 to 752.0°F DMM ± (1.0% + 3°F), –40 to 400°C DMM ± (1.0% + 1.5°C)
VFD AC Voltage: Range: 600.0 V RMS Basic Accuracy: ±1.0%
AC/DC Amps: Range: 10.00 A Basic Accuracy: ±1.0% / ±0.7%
Continuity check: Between 30 Ω and 480 Ω
True RMS: Yes

Meter Data
Auto Power Off: Yes

Power
Battery: 3 AA batteries; optional TA04 Li-Poly rechargeable battery
