CM82

Engineered with Versatility to Help You Manage Power Analysis & VFD Troubleshooting

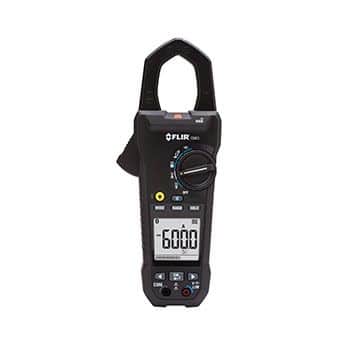

The FLIR CM82 is an industrial-grade power clamp meter engineered with advanced power analysis, harmonics measurements, and variable frequency drive (VFD) filtering functions to meet the needs of electrical troubleshooters.

The meter features a backlit display screen with large, easy-to-read digits, an analog bargraph, and powerful work lights bright enough to serve as a primary work light. Also tested to withstand a 2m drop, the CM82 has dependable functionality that’s vital to professionals.

VFD Mode
Accurately analyze non-sinusoidal waveforms and noisy signals in VFD-controlled equipment.

Harmonics Mode
Locate noise from different electrical draws to realign harmonics and reduce electro-mechanical equipment stress.

Phase Rotation
Analyze three-phase systems to measure power draw and verify if power is evenly balanced.

Inrush Current
Measure hard and soft start-up inrush current spikes while equipment is ramping up.

METERLiNK Compatibility
Embed electrical measurements into thermal images captured by METERLiNK-enabled FLIR IR cameras for easier documentation.

Power Factor and Active Power
Monitor power quality improvements, such as start-up realignments on three-phase equipment.

Bluetooth Connectivity
Connect to Android devices for remote diagnostics in hard-to-reach or hazardous areas. Also, upload data without the need for special cords.

Bright Dual-LED Worklights
Make your work safer/easier in poorly lit locations – especially useful when the lights are out or obstacles block your inspection targets.

Rugged & Shock-Resistant
Double-molded case design and extra thick rubber on the corners absorbs shock to enhance job-site reliability and long-haul durability.





Specifications
Technical Summary CM82
CM83
CM85
Basic Accuracy
AC/DC Current 600A
600A
1000A
±2%
AC/DC Voltage 1000V
1000V
1000V
±1% / 0.7%
AC VFD Voltage 1000V
1000V
1000V
±1%
Harmonics 1st-25th Order
1st-25th Order
1st-25th Order
±5%
Total Harmonic Distortion 0.0 to 99.9%
0.0 to 99.9%
0.0 to 99.9%
±3%
Inrush Current
600ACA (Integration Time 100ms)
600ACA (Integration Time 100ms)
1000ACA (Integration Time 100ms)
±3%
Active Power
10kW to 600kW (10V, 5A min)
10kW to 600kW (10V, 5A min)
10kW to 1000kW (10V, 5A min)
±3%
Diode Test 0.4 to 0.8V
0.4 to 0.8V
0.4 to 0.8V
±0.1V
Capacitance 3.999mF
3.999mF
3.999mF
±1.9%
Resistance 99.99kΩ
99.99kΩ
99.99kΩ
±1%
Continuity Threshold 30Ω
30Ω
30Ω
±1%
Frequency 20.00Hz to 9.999kHz
20.00Hz to 9.999kHz
20.00Hz to 9.999kHz
±0.5%
Bluetooth Range Max —
32ft (10m)
32ft (10m)
Jaw Opening 1.45in (37mm, 1000MCM)
1.45in (37mm, 1000MCM)
1.77in (45mm, 1500MCM)
Category Rating CAT IV-600V, CAT III-1000V
Battery Type 6 x AAA
Warranty Limited Lifetime*
Ordering Information
* When registered within 60 days of purchase.
