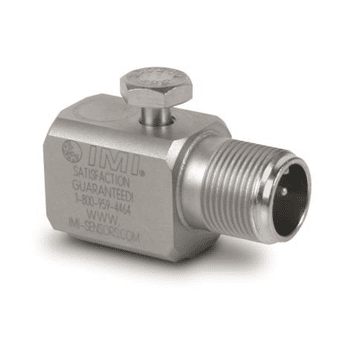

Low profile, industrial, ceramic shear ICP® accelerometers, 500 mV/g, 0.5 to 8000 Hz, side exit, 2-pin connector, single point ISO 17025 accredited calibration

  • Sensitivity: (±20%) 500 mV/g (51.0 mV/(m/s²))
  • Frequency Range: (±3dB) 30 to 180000 cpm (0.5 to 3000 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±10 g (±98 m/s²)
  • Weight: 2.61 oz (74.0 gm)
Sensitivity (±20 %) 500 mV/g 51.0 mV/(m/s²) [1]
Measurement Range ±10 g ±98 m/s²
Frequency Range (±3 dB) 30 to 180000 cpm 0.5 to 3000 Hz [4]
Resonant Frequency 1500 kcpm 25 kHz [2]
Broadband Resolution 300 µg 2941 µm/sec2 [2]
Non-Linearity ±1 % ±1 % [3]
Transverse Sensitivity ≤7 % ≤7 %
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Enclosure Rating IP68 IP68
Settling Time (within 1% of bias) ≤5.0 sec ≤5.0 sec
Discharge Time Constant ≥0.3 sec ≥0.3 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <500 Ohm <500 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 8 µg/√Hz 78.5 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 3 µg/√Hz 29.4 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 3 µg/√Hz 29.4 (µm/sec2)/√Hz [2]
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Size - Length 1.65 in 41.9 mm
Size - Width 0.74 in 18.8 mm
Size - Height 0.845 in 21.5 mm
Weight 2.61 oz 74.0 gm
Mounting Thread 1/4-28 Male No Metric Equivalent [5]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Side Side
All specifications are at room temperature unless otherwise specified.





Product Notes
[1] Conversion Factor 1g = 9.81 m/s².
[2] Typical.
[3] Zero-based, least-squares, straight line method.
[4] The high frequency tolerance is accurate within ±10% of the specified frequency.
[5] 1/4-28 has no equivalent in S.I. units.
[6] See PCB Declaration of Conformance PS023 or PS060 for details.
081A97 Thru bolt 1/4-28 (1)
ICS-2 NIST-traceable single-point amplitude response calibration at 6000 cpm (100 Hz) for each axis (1)
Optional Versions:
(EX) Hazardous Area Approval- contact factory for specific approvals
    Hazardous Area Approval EEx ia IIC T4, -40°C≤Ta≤121°C, II 1 G
    Hazardous Area Approval Cl I, Div I, Groups A, B, C, D; Cl II, Div I, Groups E, F, G; Cl III, Div I
    Hazardous Area Approval Ex ia IIC T4, AExia IIC, T4
    Hazardous Area Approval EEx nL IIC T4, -40°C<=Ta<=121°C, II 3 G
    Hazardous Area Approval Cl I, Div 2, Groups A, B, C, D; ExnL IIC T4, AExnA IIC T4
(M) Metric Mount
     M081A97 Captive Mounting Bolt (1)
