HT602D11

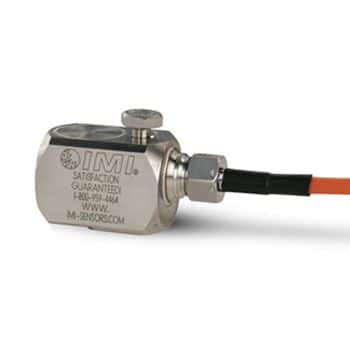

Low profile, industrial, ceramic shear ICP® accel., 100 mV/g, 0.4 to 8000 Hz, side exit, 10-ft integral cable, High Temp option

Capable of withstanding continuous temperatures of 325 °F (162 °C) without decay in performance, higher than any other IEPE accelerometer in the industry.

Specifications

English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²) [1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±3 dB) 48 to 480000 cpm 0.8 to 8000 Hz [4][5]
Resonant Frequency 1500 kcpm 25 kHz [2]
Broadband Resolution (1 to 10 kHz) 150 µg 1472 µm/sec2 [2]
Non-Linearity ±1 % ±1 % [3]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to 325 °F -54 to 162 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Enclosure Rating IP67 IP67
Electrical
Settling Time (within 1% of bias) ≤2.0 sec ≤2.0 sec
Discharge Time Constant ≥0.2 sec ≥0.2 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 9.0 µg/√Hz 88.3 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 4.0 µg/√Hz 39.2 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 2.0 µg/√Hz 19.6 (µm/sec2)/√Hz [2]
Electrical Isolation >100000000 Ohm >100000000 Ohm
Physical
Size – Length 2.1 in 53.3 mm
Size – Width 1.0 in 25.4 mm
Size – Height 1.0 in 25.4 mm
Weight (without cable) 5.4 oz 153 gm
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Electrical Connector Integral Cable Integral Cable
Electrical Connection Position Side Side
Cable Termination Blunt cut Blunt cut
Electrical Connections (White ) Signal / Power Signal / Power
Electrical Connections (Black ) Ground Ground
Cable Length 10 ft 3.0 m
Cable Type 055 2-cond shielded with FEP jacket 055 2-cond shielded with FEP jacket

All specifications are at room temperature unless otherwise specified.

CE

Product Notes
[1] Conversion Factor 1g = 9.81 m/s².
[2] Typical.
[3] Zero-based, least-squares, straight line method.
[4] 1Hz = 60 cpm (cycles per minute).
[5] The high frequency tolerance is accurate within ±10% of the specified frequency.
[6] See PCB Declaration of Conformance PS023 for details.
