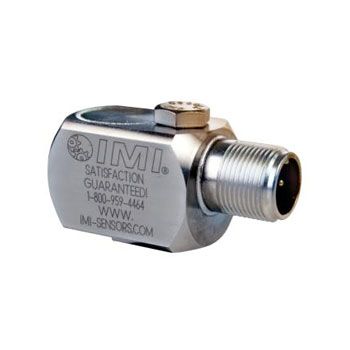

HT602D01

Platinum Stock Products; High temperature, low profile, industrial, ceramic shear ICP® accel., 100 mV/g, 0.8 to 8000 Hz, side exit, 2-pin connector, single point ISO 17025 accredited calibration

Capable of withstanding continuous temperatures of 325 °F (162 °C) without decay in performance, higher than any other IEPE accelerometer in the industry.

  • Sensitivity: (±10%) 100 mV/g (10.2 mV/(m/s²))
  • Frequency Range: (±3dB) 48 to 480000 cpm (0.8 to 8000 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±50 g (±490 m/s²)
  • Weight: 5.4 oz (153 gm)
 English:SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²) [1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±10 %) 102 to 180000 cpm 1.7 to 3000 Hz [4][5]
Frequency Range (±3 dB) 48 to 480000 cpm 0.8 to 8000 Hz
Resonant Frequency 1500 kcpm 25 kHz [2]
Broadband Resolution (1 to 10 kHz) 150 µg 1472 µm/sec2 [2]
Non-Linearity ±1 % ±1 % [3]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to 325 °F -54 to 162 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Enclosure Rating IP68 IP68
Electrical
Settling Time (within 1% of bias) ≤2.0 sec ≤2.0 sec
Discharge Time Constant ≥0.2 sec ≥0.2 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 9.0 µg/√Hz 88.3 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 4.0 µg/√Hz 39.2 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 2.0 µg/√Hz 19.6 (µm/sec2)/√Hz [2]
Electrical Isolation >100000000 Ohm >100000000 Ohm
Physical
Size - Length 2.1 in 53.3 mm
Size - Width 1.0 in 25.4 mm
Size - Height 1.0 in 25.4 mm
Weight 5.4 oz 153 gm
Mounting Thread 1/4-28 UNF No Metric Equivalent [6]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Side Side
Electrical Connections (Pin A) Signal / Power Signal / Power
Electrical Connections (Pin B) Ground Ground

All specifications are at room temperature unless otherwise specified.



CE



Product Notes
[1] Conversion Factor 1g = 9.81 m/s².
[2] Typical.
[3] Zero-based, least-squares, straight line method.
[4] 1Hz = 60 cpm (cycles per minute).
[5] The high frequency tolerance is accurate within ±10% of the specified frequency.
[6] 1/4-28 has no equivalent in S.I. units.
[7] See PCB Declaration of Conformance PS023 for details.
