RS6780 MWIR

Category

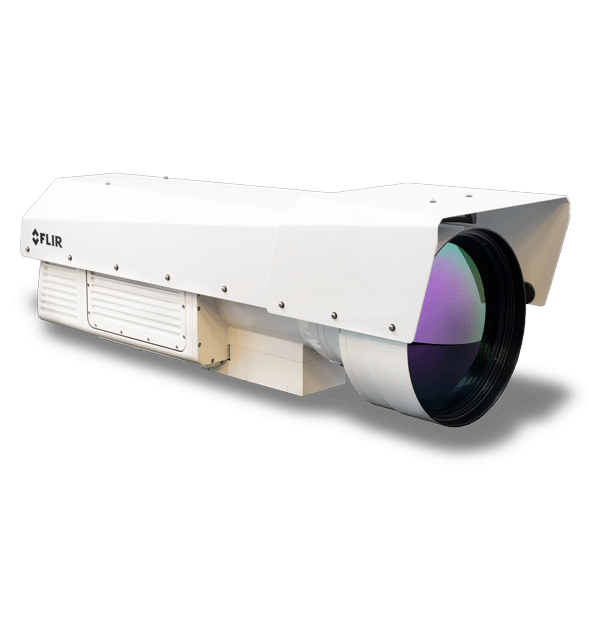

Introducing the FLIR RS6780, an advanced thermal imaging solution offering superior detector, triggering, and synchronization capabilities within a rugged, environmentally protected package. Designed to excel in the most demanding research and development (R&D) applications, the RS6780 is easy to configure and integrate for successful data acquisition.

Equipped with a three-position motorized filter wheel and continuous metric zoom (CZ) lens, the RS6780 delivers sharply focused, high-quality thermal images in long-range and tracking scenarios. The standard 50-250 mm CZ lens can be factory-calibrated for temperature and radiance measurements, providing researchers with precise data without compromising the flexibility of the optics platform.



Experience unparalleled performance and versatility with the FLIR RS6780 thermal imaging solution.
  • Capture crispy thermal images of high-temperature targets with a 15µm, 640 x 512 resolution InSb MWIR detector. The unit is fitted with a standard 50 – 250 mm lens, that can be extended with the addition of a 3x afocal attachment, to 150 mm – 750 mm (3.5°to 0.8°). This state-of-the-art lens provides continuous metric zoom through the complete focal length and embeds the lens position data in each frame.
  • Synchronize the camera with external events or instrumentation, control precisely when an image frame is generated with advanced triggering and embed TSPI-accurate IRIG B data timestamping at a resolution of 20µs.
  • Easily integrate this system indoors or outdoors – the IP65 weatherproof pressurised enclosure, fitted with a solar glare reducing sunshield provides protection in the harshest environments.
Download Brochure

Additional Info

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
