633A01

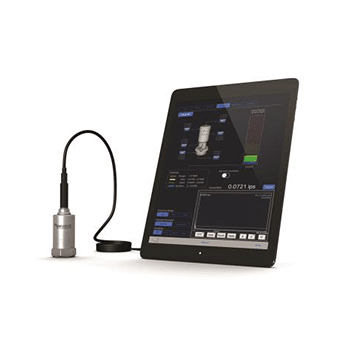

Digital, industrial, ceramic accelerometer, 0.9 to 15k Hz, top exit, integral cable terminating in USB connector.

For information on the Windows, iOS, Android and macOS software options available for use with the product, reference the product manual.

  • Sensitivity: 334566 counts/g (34105 counts/(m/s²))
  • Frequency Range: (±3dB) 54 to 900000 cpm (0.9 to 15000 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±20 g pk (±196 m/s² pk)
  • Weight: 4.62 oz (131 gm)
 English:SI:
Performance
Sensitivity (Channel A) 334566 counts/g 34105 counts/(m/s²) [1][4]
Sensitivity (Channel B) 664689 counts/g 67756 counts/(m/s²) [1][4]
Measurement Range (Channel A) ±20 g pk ±196 m/s² pk [3]
Measurement Range (Channel B) ±10 g pk ±98 m/s² pk [3]
ADC Bandwidth (-3 dB) 9.3 to 1374000 cpm 0.155 to 22900 Hz
Frequency Range (±5 %) 120 to 480000 cpm 2 to 8000 Hz [3][5]
Frequency Range (±10 %) 90 to 660000 cpm 1.5 to 11000 Hz [3][5]
Frequency Range (±3 dB) 54 to 900000 cpm 0.9 to 15000 Hz [3][5]
Resonant Frequency ≥1500000 cpm ≥25000 Hz
Mounted Resonance 1044000 cpm 17400 Hz [3]
Mounted Resonance Amplification 200 % 200 % [3]
Broadband Resolution (1 to 10000 Hz) 0.0025 g pk 0.0245 m/s² pk [1][3]
Non-Linearity ≤2 % ≤2 % [2]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) 7000 g pk 68647 m/s² pk
Temperature Range (Operating) +14 to +158 °F -10 to +70 °C
Temperature Response (Coefficient ) 0.10 %/°F 0.18 %/°C [3]
Electrical
Communication Standard USB 2.0 Full Speed USB 2.0 Full Speed
Power Consumption ≤45 mA ≤45 mA [3]
Internal ADC 24 bit 24 bit
Supported Resolution Rates (Selectable) 24 bit 16 bit 24 bit 16 bit
Supported Sample Rates (Selectable) 48 44.1 32 22.05 16 11.025 8 kHz 48 44.1 32 22.05 16 11.025 8 kHz
Physical
Size - Hex 1.0 in 25.4 mm
Size - Height 2.6 in 66.0 mm
Weight 4.62 oz 131 gm
Mounting Thread 1/4-28 UNF 1/4-28 UNF [6]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector Integral Cable Integral Cable
Electrical Connector USB Type A Male USB Type A Male
Electrical Connection Position Top Top
Cable Length 9.6 ft 2.9 m
All specifications are at room temperature unless otherwise specified.


CE



Product Notes
[1] Conversion Factor 1g = 9.81 m/s².
[2] Zero-based, least-squares, straight line method.
[3] Typical.
[4] Typical value. For actual calibrated sensitivity values, refer to calibration label.
[5] Frequency range at highest supported sample rate.
[6] 1/4-28 has no equivalent in S.I. units.
[7] See PCB Declaration of Conformance PS194 for details.
Accessories:
Supplied
081A40 Mounting Stud (1)
Optional Versions:
No optional versions
