Yellotec Broadens Service Range with On-Site Electrical Motor Circuit Analysis

Unplanned downtime can be extremely costly, with potential losses reaching up to US$22,000 per minute. Yellotec offers advanced Electrical Motor Analysis solutions to mitigate the risk of motor electrical failures and ensure operational efficiency. Our comprehensive predictive maintenance (PdM) instruments surpass traditional methods like vibration loggers and infrared thermography by providing detailed analysis to keep electrical motors, transformers, and generators in peak condition.

Designed for versatility across various industries, our solutions are suitable for any business using electric motors—from manufacturing and mining to industrial and utilities sectors. Key benefits include reduced downtime, enhanced reliability, and broad applications, helping you maintain smooth operations and avoid costly disruptions.

Contact us to learn how our advanced motor analysis services can benefit your organization.

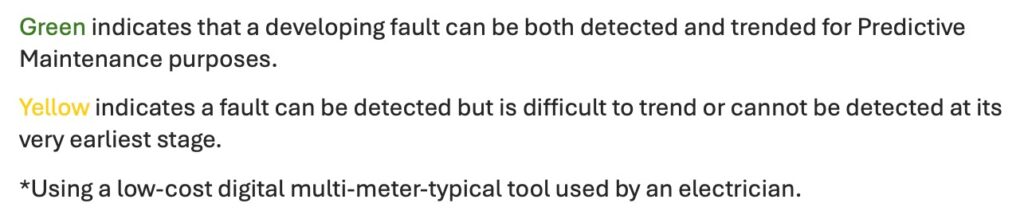

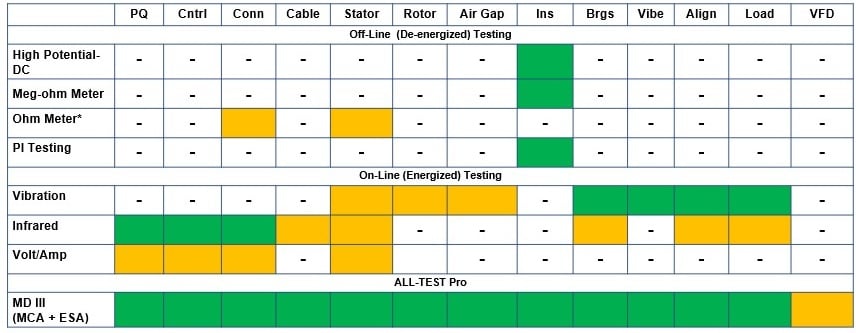

Green/Yello table

SERVICE

Did you know Yellotec now offers advanced de-energized diagnostic services for electrical motors? Using innovative technology from ALL-Test Pro, we can take measurements from Motor Control Centers (MCCs), isolators, contactors, and Variable Frequency Drives (VFDs).

Key Diagnostic Measurements:

  • Winding Resistance
  • Impedance
  • Inductance
  • Capacitance
  • Dissipation Factor
  • Phase Angle
  • Current Frequency Response
  • Insulation Resistance



Detected Failure Modes:

  • Turn-to-Turn, Coil-to-Coil, and Phase-to-Phase Faults
  • Insulation Failures
  • Open Phases
  • Burned or Contaminated Windings
  • Poor Connections
  • Broken or Cracked Rotor Bars
  • Rotor Casting Voids
  • Rotor Eccentricity
  • Grounded Windings
  • Cable Faults



Recommendations:
Perform Motor Circuit Analysis (MCA) every 6-12 months for:

  • Critical motors in use
  • Spare motors in storage
  • Motors that frequently stop/start
  • Motors in harsh environments
  • Motors with known issues



MCA is Non-Destructive, Versatile, and Fast.  Suitable for AC induction, DC, Synchronous motors, Generators, and Transformers. Experience Yellotec’s reliable testing services to ensure optimal motor performance. Contact us for more information or to schedule a consultation.

EDUCATION AND TRAINING

Webinar:  Case Study

Stator Looseness identified with Electrical Motor Testing

Date:  Thursday, 25 July 2024

Starting at 1pm to 2pm

OR…

Training Course:

Electrical Motor Diagnostic Level 1

Dates:  19 to 23 August 2024

And 16 to 20 September 2024

Location: Woodmead, Johannesburg, South Africa

Course Options:

  1. MCA™ (De-Energized) & ESA (Energized) – 5 Day Course
  2. MCA™ (De-Energized) only – 3 Day Course
  3. ESA (Energized) only – 2 Day Course



Enhance your maintenance and reliability skills by attending our Electrical Motor Diagnostic Level 1 course.  This Training is ideal for supervisors and technicians looking to develop advanced motor diagnostic skills.

Topics Covered:

  • AC & DC Theory Review
  • AC Circuits Current, Impedance, Power
  • Resistance, Reactance, Impedance
  • Electrical Distribution and Grounding Systems
  • Motor Construction & Operation
  • Standards and References of electrical motor testing
  • Theory of De-Energized Electric Motor Testing
  • Theory of Electrical Signature Analysis

PRODUCTS
for Electric Motor Testing

 DE-ENERGIZED (MCA™) TESTING

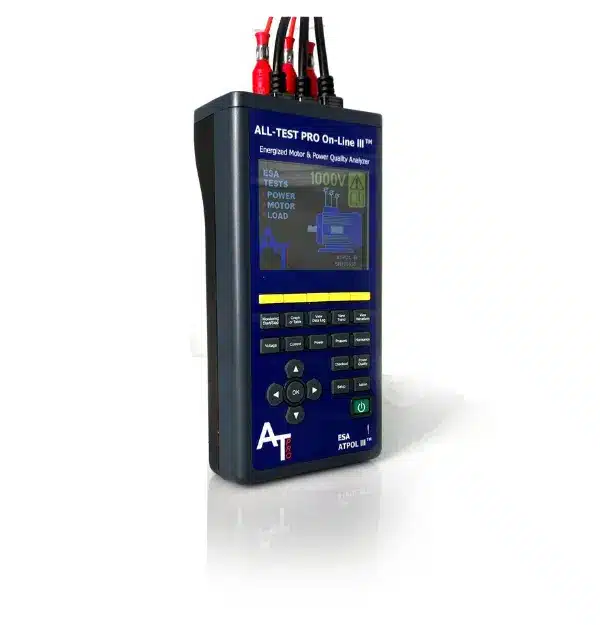

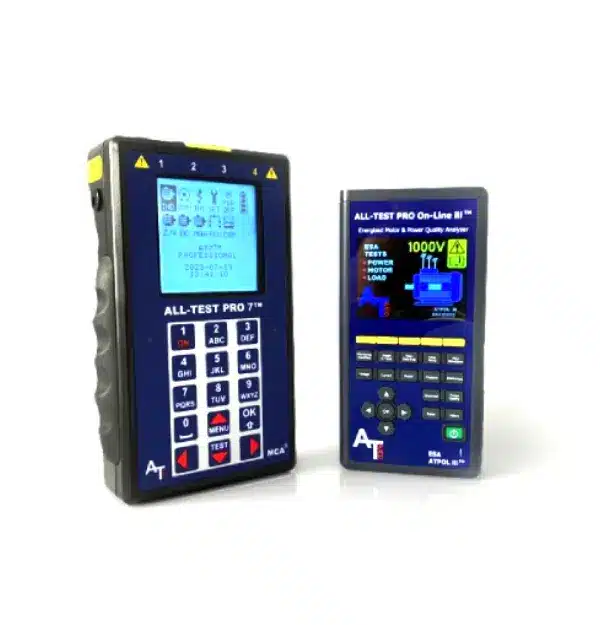

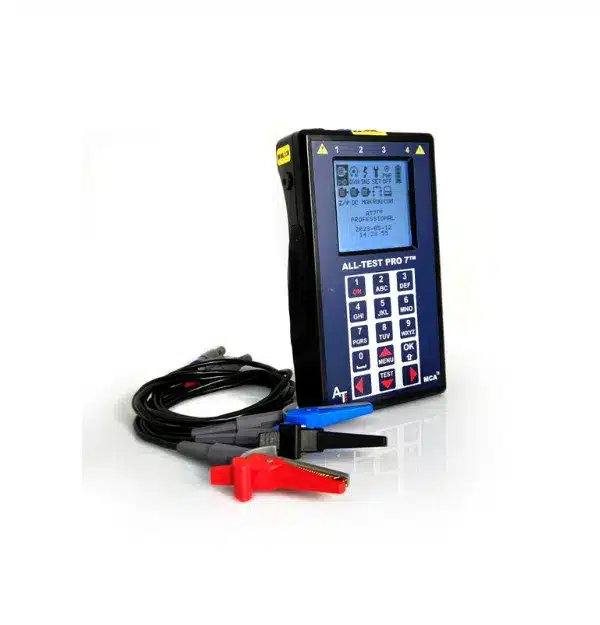

Motor Circuit Analysis (MCA™) enables de-energized motor testing of the entire electrical portion of the motor system. Our product lineup for this category includes the highly popular: ALL-TEST PRO 7™ PROFESSIONAL, ALL-TEST PRO 34™, ALL-TEST PRO 34 EV™, and MOTOR GENIE®.

ENERGIZED (ESA) TESTING

Electrical Signature Analysis (ESA) is an energized test method where voltage and current waveforms are captured while the motor system is running, allowing for a comprehensive assessment of the motor system’s health. In this category, you can choose from our: ALL-TEST PRO On-Line III™ and the ALL-SAFE PRO®, an accessory to the ATPOL III™.

ASSEMBLIES

Our assemblies integrate ESA, MCA, and software to enhance plant productivity, offering a rapid return on investment (ROI). For comprehensive motor analysis, we provide the:ALL-TEST PRO MD III™ assembly.

SUPPORTING PRODUCTS
for Electric Motor Testing

INFRARED THERMOGRAPHIC CAMERAS

  • FLIR E8
  • E76 or
  • T865

(Pending on customer needs).

VIBRATION ANALYZER

  • VibScanner or
  • VibExpert

(Pending on customer needs).

LASER SHAFT ALIGNMENT

  • SHAFTALIGN Touch
  • OPTALIGN Touch
  • ROTALIGN Touch
  • ROTALIGN Touch EX

(Pending on customer needs).

TEST & MEASUREMENT INSTRUMENTS

  • FLIR CM85 Current Clamp Meter
  • FLIR DM285 True RMS Digital Multimeter and Thermal Imager

(Pending on customer needs).
