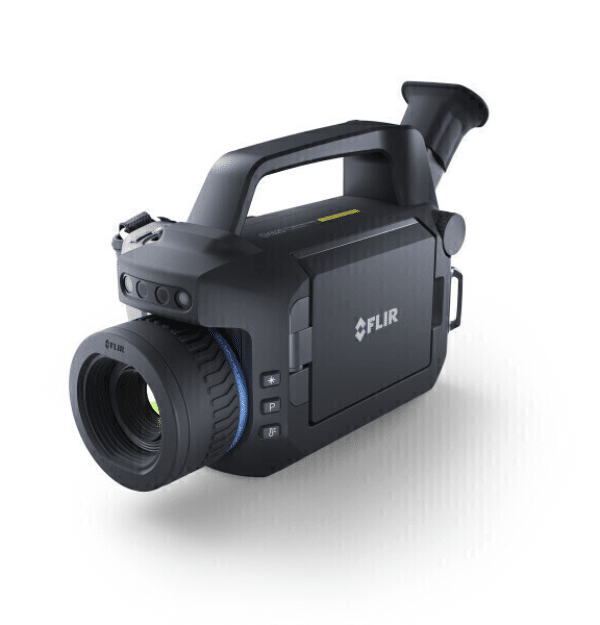

With up to 640 × 480 (307,200 pixels) thermal resolution, FLIR G-Series cameras feature innovative gas quantification analytics, measuring leak type and severity internally, eliminating the need for secondary devices.
While all models are OOOOa certified, the FLIR Gx320 and Gx620 boast ATEX compliance, making them ideal for detecting gas emissions in complex systems like refineries, petrochemical facilities, natural gas well pads, compression stations, and power generation plants.
Â
| Product Variations | Gx320 24°, Gx320 14.5°, G620 14.5° G620 24°, Gx620 14.5°, Gx620 24° |
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
Specifications
| IR Resolution | 320 × 240 thermal resolution (76,800 pixels) |
| Detector Pitch | 30 μm |
| Accuracy | ±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F) |
| Spectral Range | 3.2 µm to 3.4 µm |
| Hazardous Location Compliance | ATEX/IECEx, Ex ic nC op is IIC T4 Gc II 3 G ANSI/ISA-12.12.01-2013, Class I Division 2 CSA 22.2 No. 213, Class I Division 2 |
