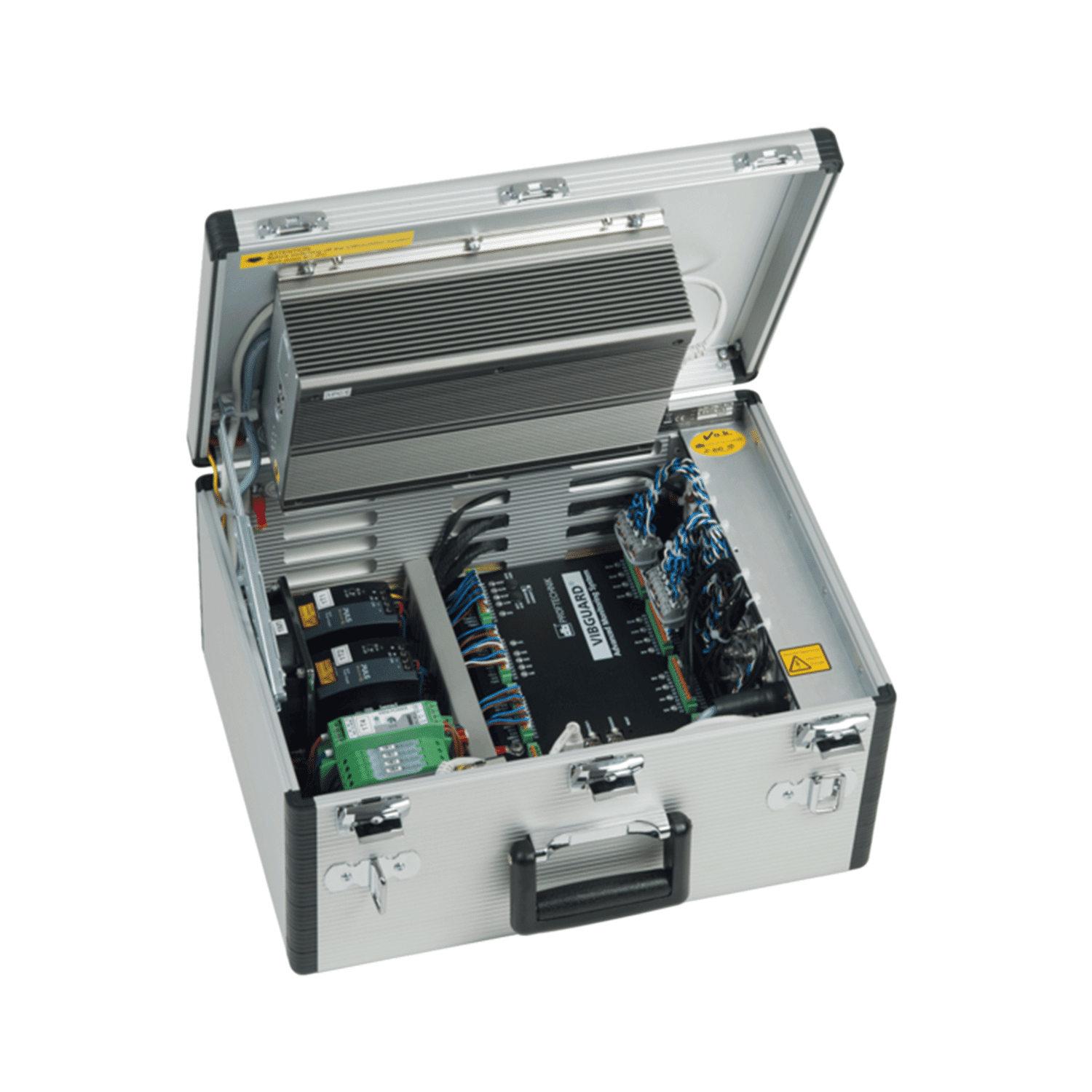

Providing all the great features of VIBGUARD, plus the mobility needed for troubleshooting various machines.
VIBGUARD portable is IP 64 rated and comes along in a sturdy aluminium case.
The portable version of VIBGUARD can be set ready to measure quickly on almost all kind of machines to perform in-depth troubleshooting. As his stationary brother, VIBGUARD portable is available in various configurations and optionally equipped with an integrated industrial PC for even more flexibility. For example, with the integrated PC and a LAN or mobile internet connection, measurement data can be accessed and analyzed remotely and if needed additional measurement tasks can be triggered.
Key features
Technical specifications
| no industrial PC VIB 7.800-MOB | industrial PC VIB 7.800-MOBIPC | |
|---|---|---|
| Temperature range | -20 °C … + 60 °C | -20 °C … + 45 °C |
| Weight | approx. 11 kg | approx. 14 kg |
| Protection type | IP 64 | IP 64 |
| Case, dimensions (L x W x H) | 445 x 220 x 355 mm | 445 x 220 x 355 mm |
| Case, material | Aluminium | Aluminium |
| Connections | 20x TNC (sensors), 8x M12 (dig. I/0; tacho / pulse),
1x power plug, 1x Ethernet (RJ45) |
20x TNC (sensors), 8x M12 (dig. I/0; tacho / pulse),1x power plug, 1x Ethernet (RJ45) |
