Provides the user with the tools for performing basic spectral analysis on audible sound images.

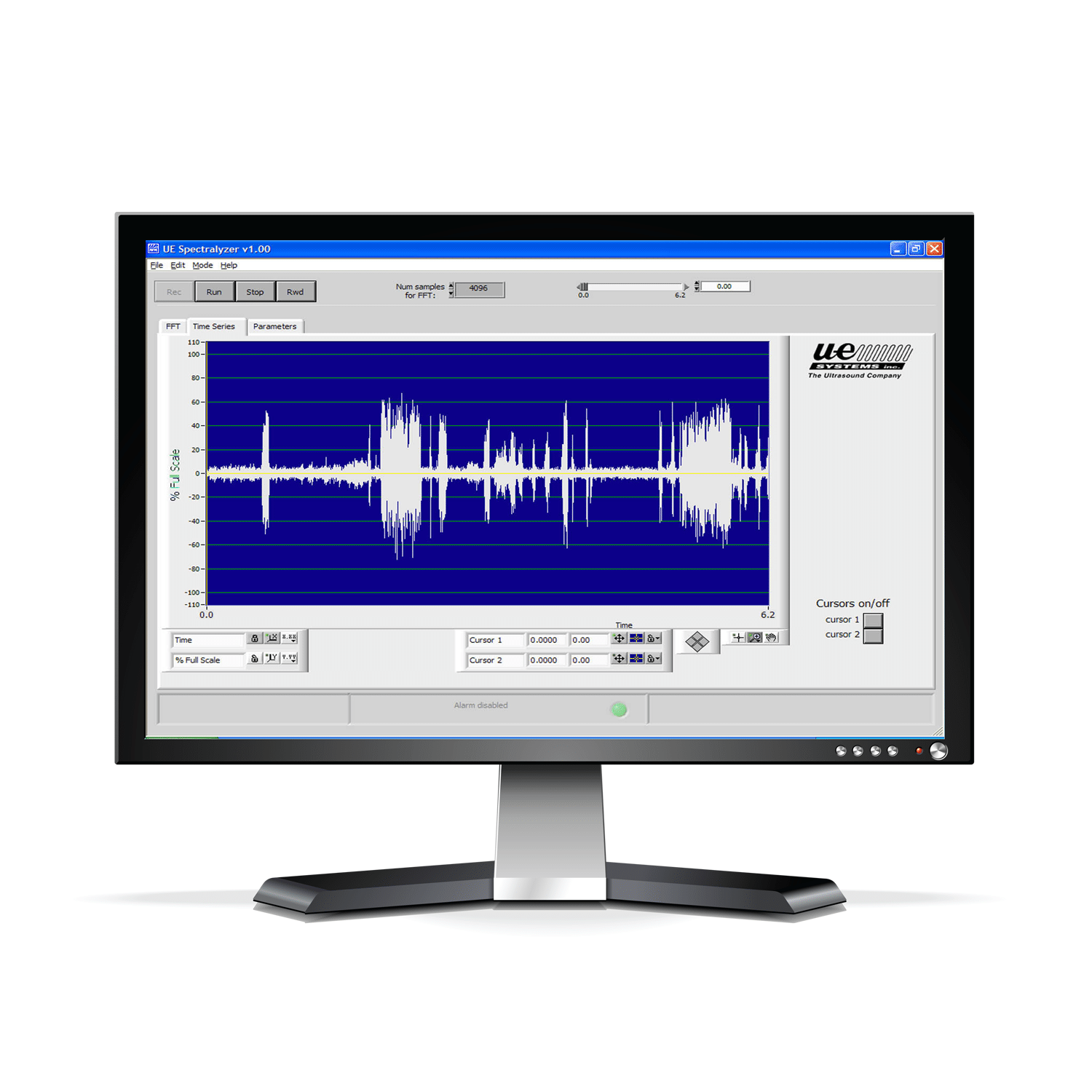

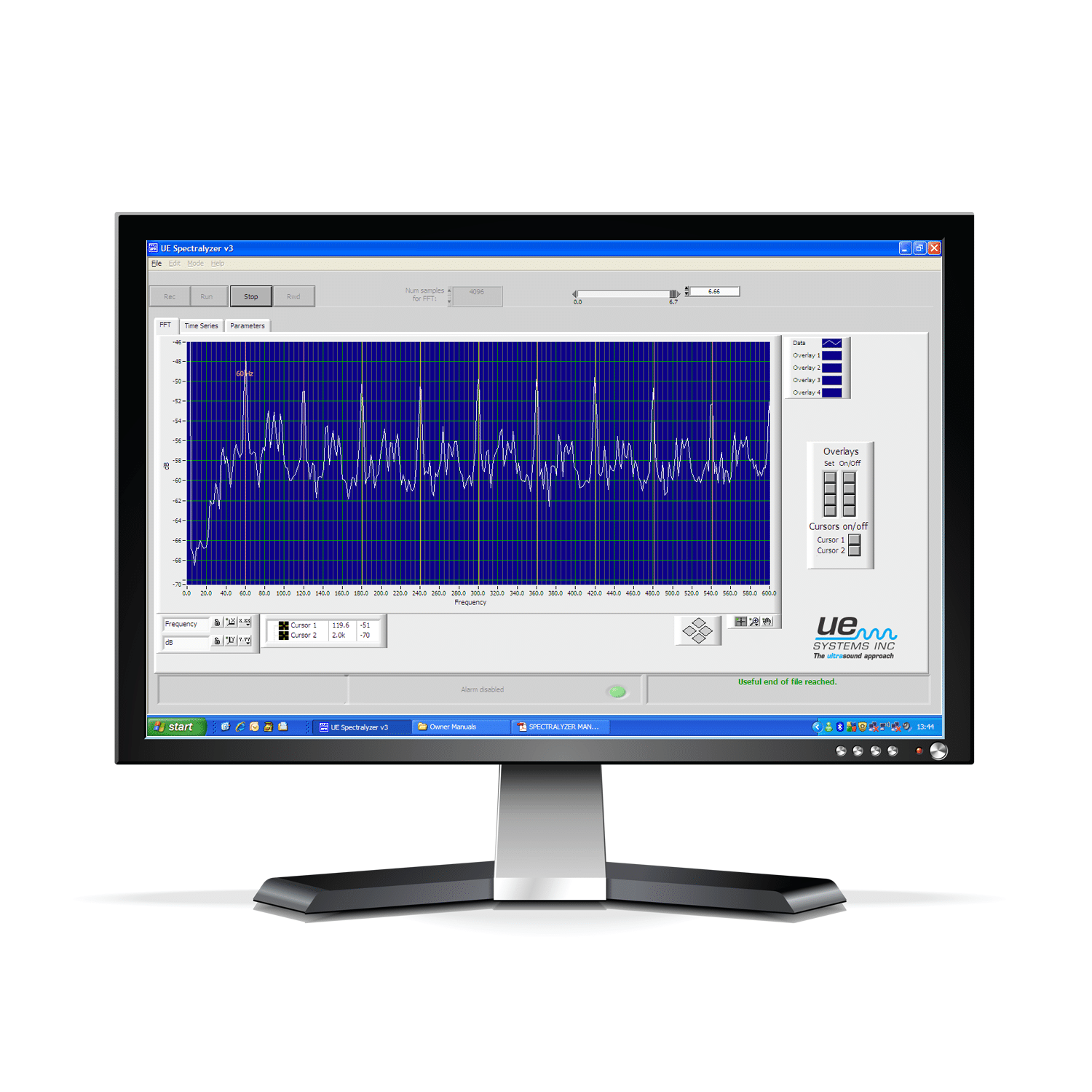

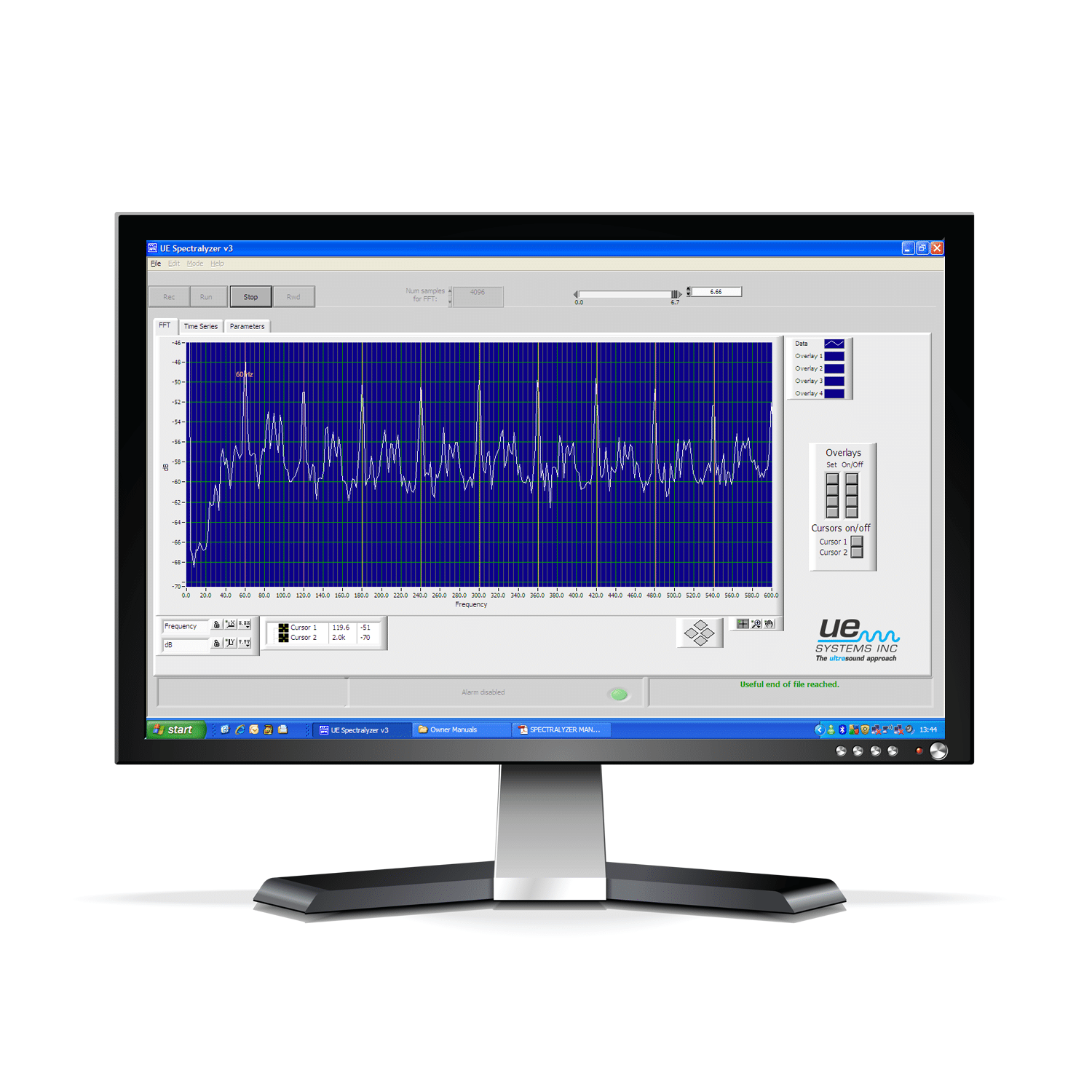

The program displays spectral (FFT), time series, dual (FFT and time series), waterfall, and parametric information on 5 main display windows.
The software user can perform program functions by selecting options from the programs main tool bar. The user can control particular aspects of the display windows using program controls. The program controls appear on the scale legend, cursor controls, graph pallet, overlay pallet, and plot legend. Additionally the user can control the operation of the spectral analysis by using the control buttons (REC, RUN, STOP RWD).
Features
44.1KHz Max Sampling Rate Supported (hardware dependant Averaging: Vector, Peak Hold, RMS
Frequency Span: (0 to 1/2 of selected sampling rate)
Weighting: Exponential, Linear
Single Channel Operation
FFT Windowing
Spectral Overlays
Modes: Realtime, Record & Playback
Narrowband FFT sizes through 32,768 points
Cursors: Frequency dB, Harmonic Alarm
Displays: Spectrum Time Series
Alarm Cursor: Low Frequency, High Frequency dB Setpoints
Frequency Markers
