Alignment Systems

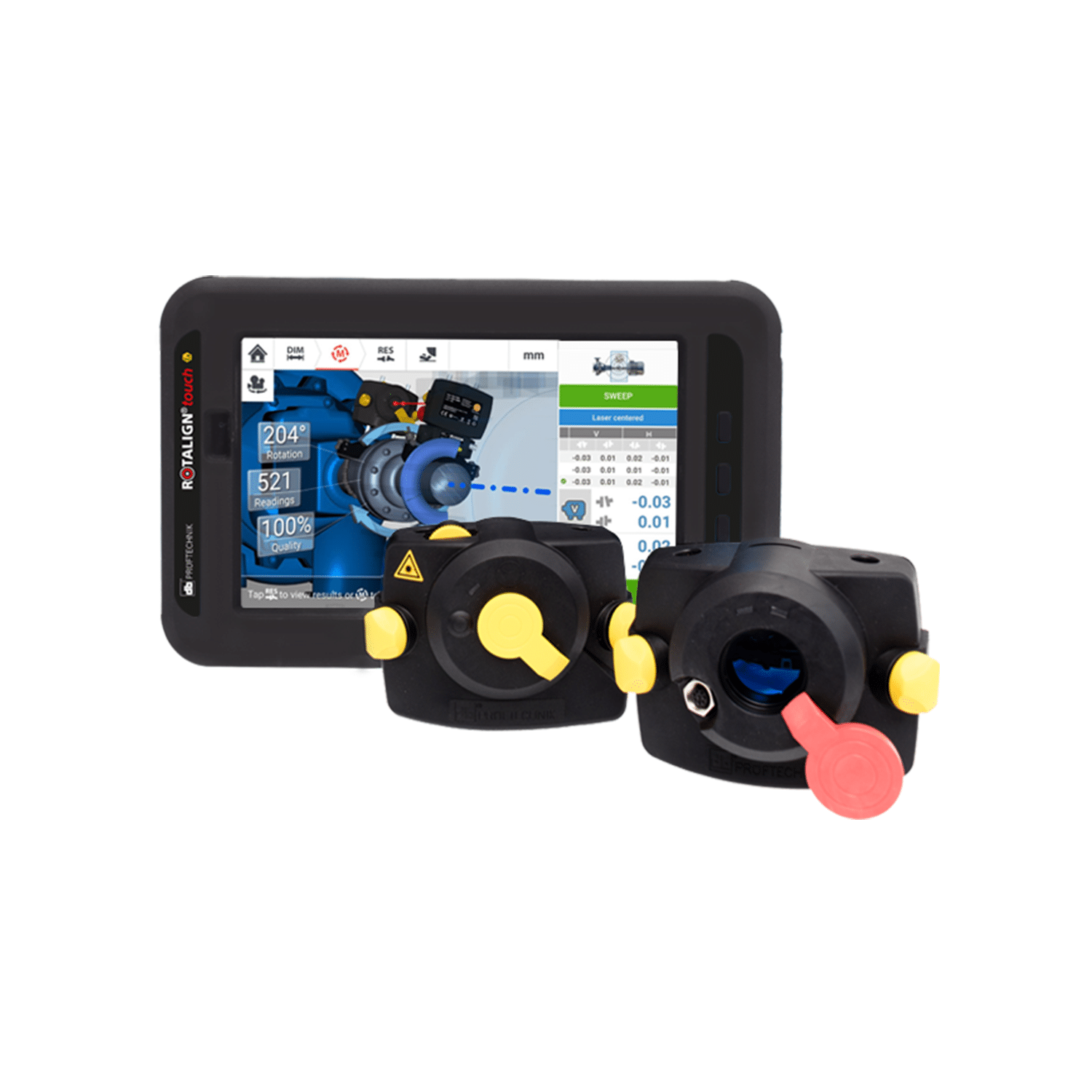

ROTALIGN touch EX

Powerful alignment features in explosive atmospheres.

Intrinsically safe

ATEX/IECEx Zone 1 certified. Avoid ‘hot work permits’ and save time.

Premium features save time and effort

Rugged tablet with capacitive touch screen, advanced alignment features, integrated Wi-Fi, Bluetooth, RFID and camera.

Best measurement accuracy and repeatability

sensALIGN 5 unique single-laser technology offers repeatable high precision and usability in any situation.

Features

ROTALIGN touch EX is Zone 1 ATEX/IECEX certified. Packed with user-friendly alignment features unique to PRUFTECHNIK, the ROTALIGN touch EX shortens the measurement time with:

Continuous SWEEP Mode for high-quality measurement in only one shaft rotation
Live Move function for simultaneous real-time machine corrections in both horizontal and vertical directions
vertiSWEEP to measure vertical machines in one rotation of the shaft
Cardan shaft rotating-arm bracket allows measurements to be performed without removing the shaft
Soft Foot Wizard to diagnose soft foot problems
Move Simulator lets the operator simulate shim values and horizontal corrections before moving the machine

Have instant access to the critical data you need with full mobile connectivity. The ROTALIGN touch EX tablet is Wi-Fi enabled and equipped with a Bluetooth module, an integrated camera and an RFID reader for automatic machine identification and error-free two-way transfer of asset data.

Direct communication between the tablet and the ALIGNMENT RELIABILITY CENTER 4.0 PC software allows specialists to archive, analyze, and process alignment data to improve asset performance improvement and reliability.
