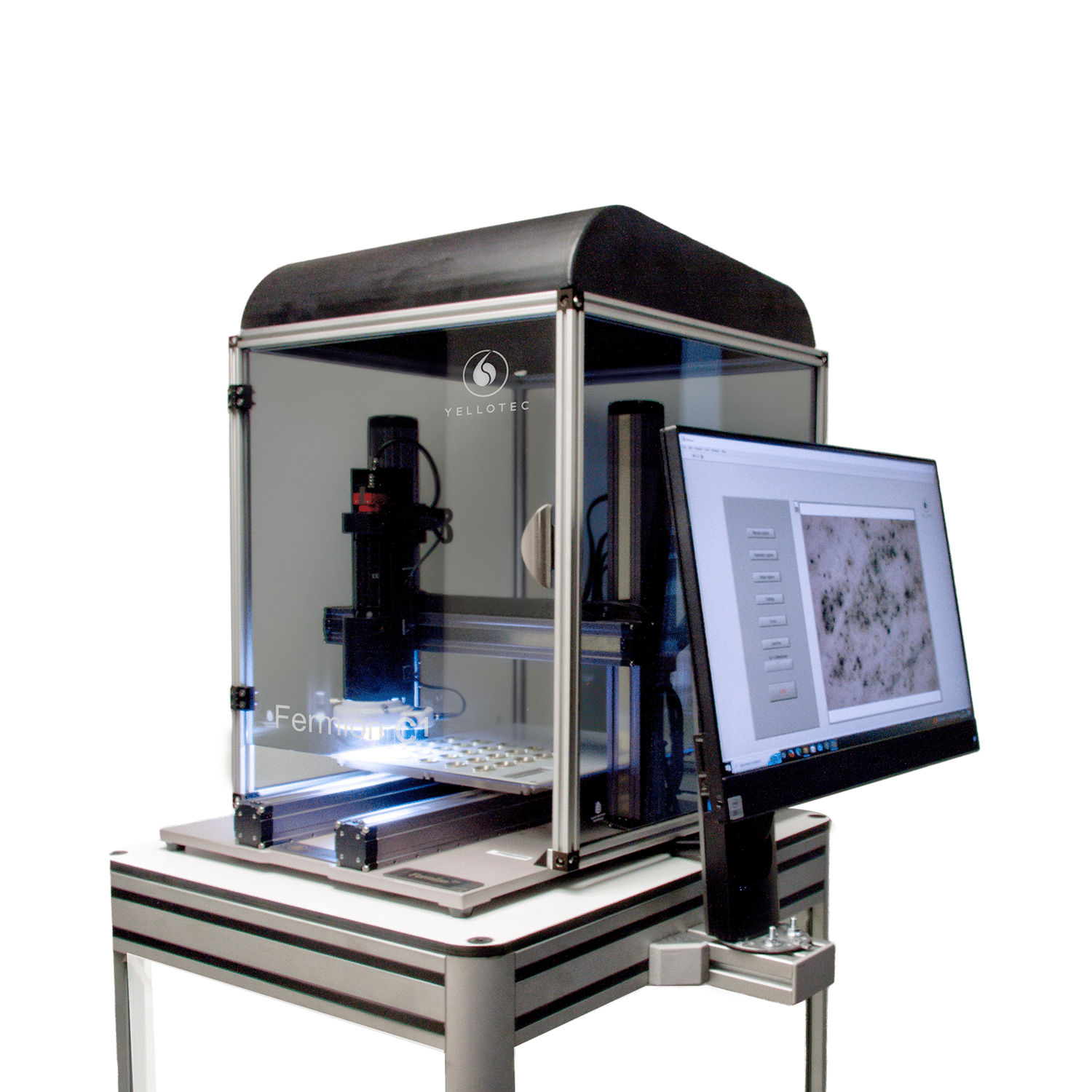

Yellotec is proud to present their in-house designed and constructed Fermion C1 – Automated Microscopic Particle Counter (AMPC).

Yellotec is proud to present their in-house designed and constructed Fermion C1 – Microscopic Particle Counter (AMPC) which measures solid particulate contamination of liquids to control the cleanliness of used and new oils—ultimately increasing equipment life and availability of all lubricated assets. The Fermion C1 will accurately measure the Oil Sample results by removing Human Error and Outside influence from the analysis.

Fermion C1 is a fully Automated Microscopic Particle Counter, that has in a laboratory that complies with ASTM ISO 4407 counting method. The software reports the particle count in ISO 4406:99 standard for analysis.

Typical oil that can be tested is as follows:

Hydraulic oils
Turbine oils
Automotive and Industrial Gear oils
Engine oils
Water-based hydraulic fluids
Phosphate ester-based hydraulic fluids
Fuels
Coolants

Unique characteristics:

High-resolution digital camera.
Automatic Particle recognition and sizing using Yellotec-developed propriety software.
The system allows four fully calibrated particle sizes and measuring

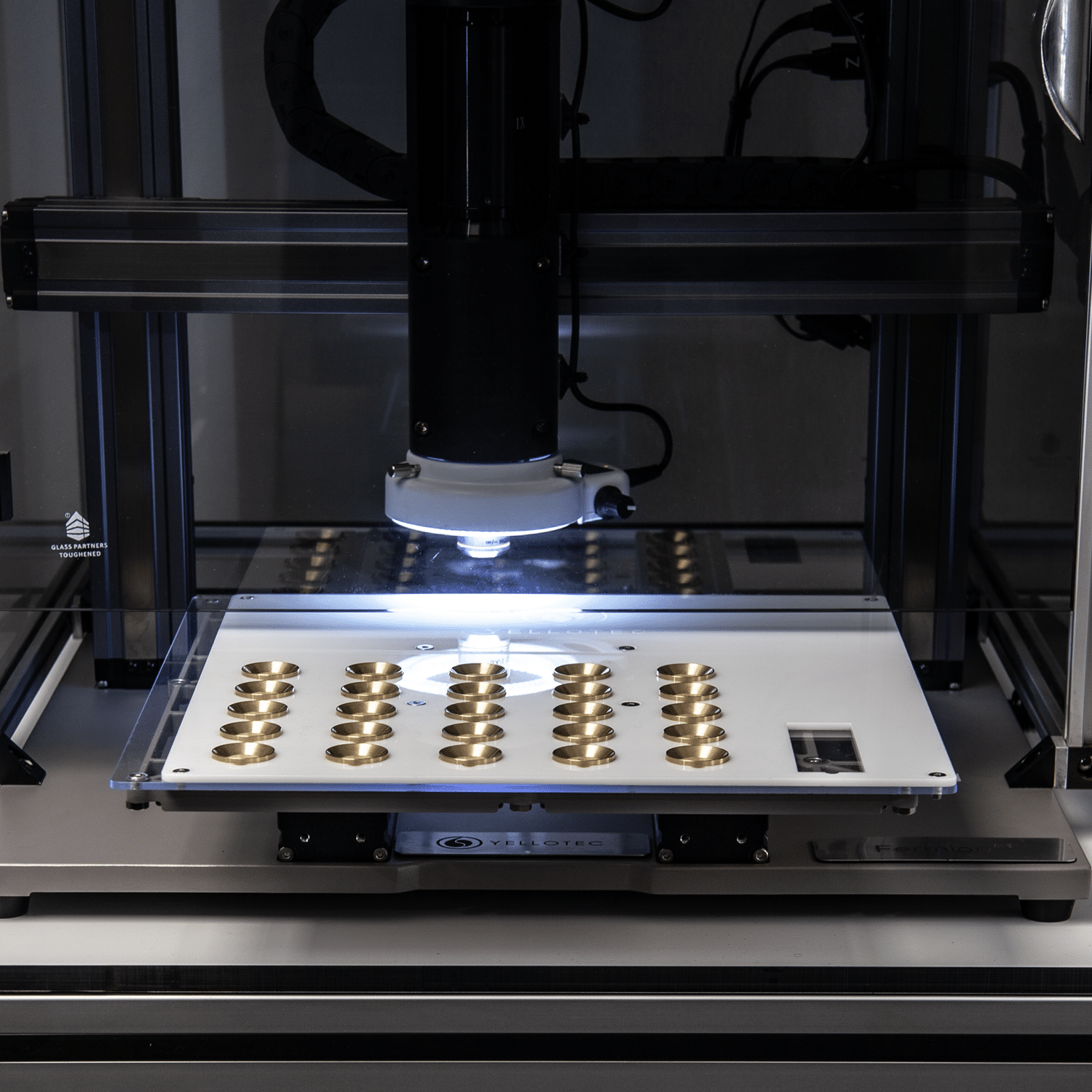

Fully automated X, Y, and Z sample stage (25 sample capacity).

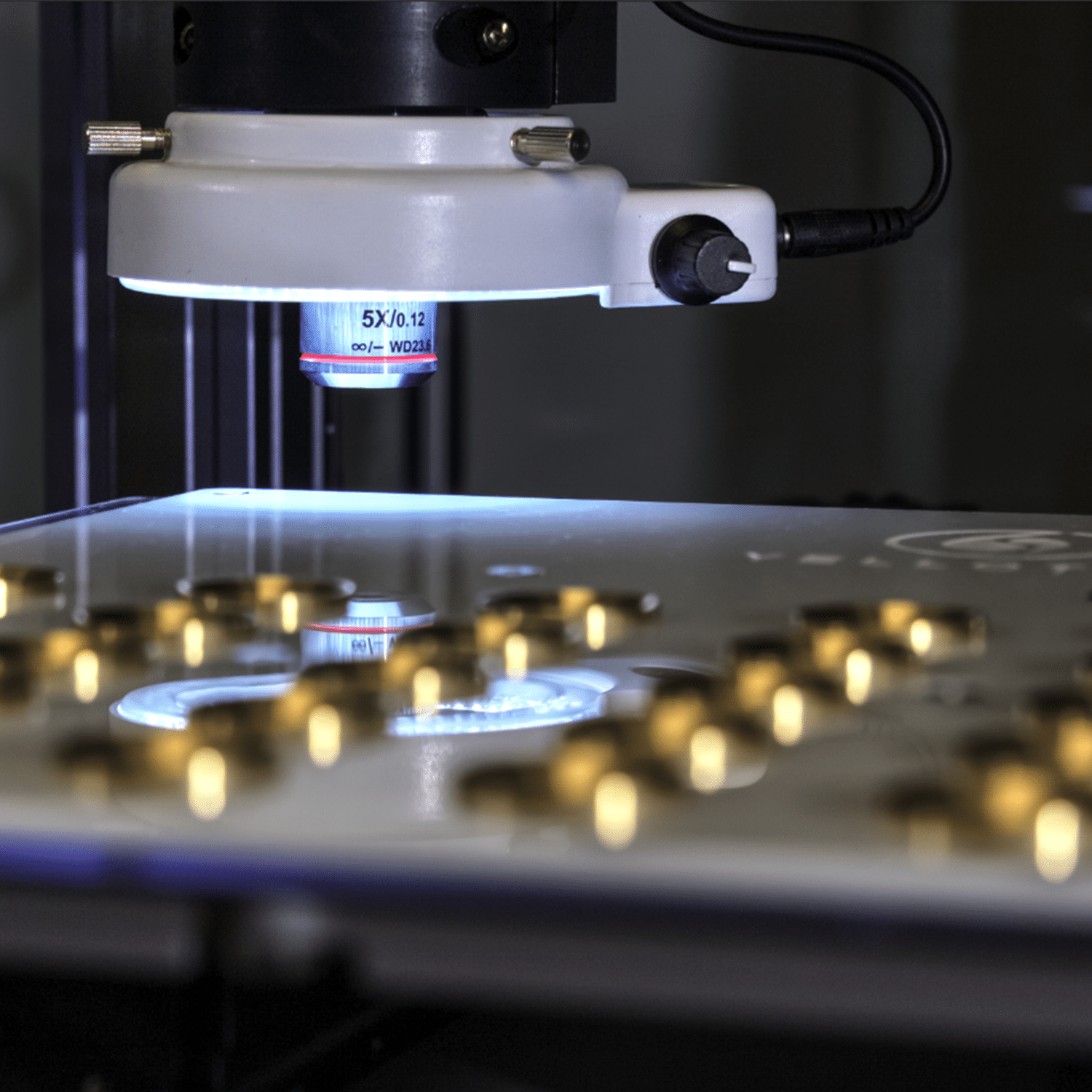

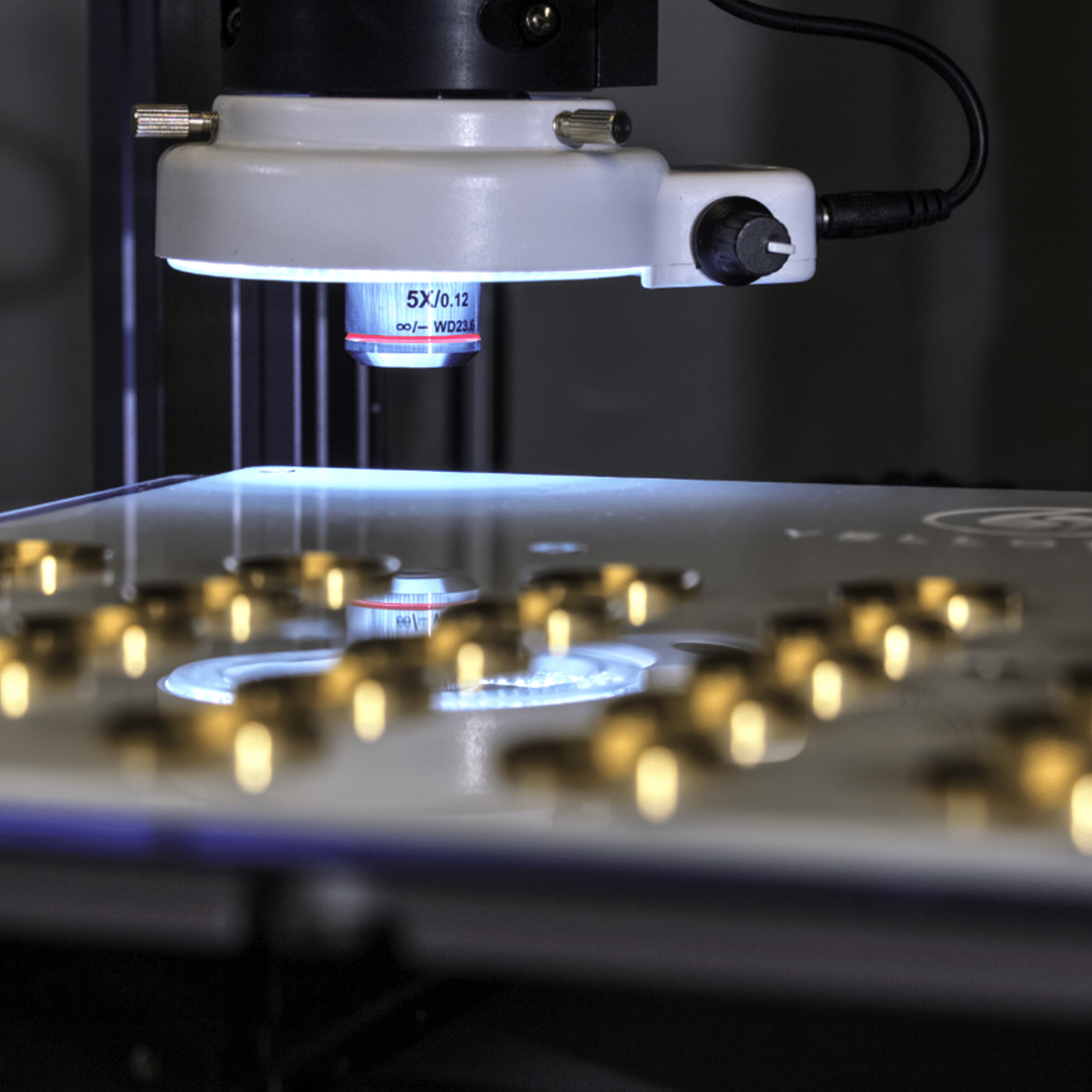

Optically magnification Microscopic stage
LED light source for sample illumination.
Yellotec developed particle analysis software capable of recognizing and measuring wear and contamination particles for separate reporting purposes.
External joystick to manipulate the microscope when in manual mode
High-spec workstation PC with 24″ Monitor.

What is Particle Measuring Technology?

Particle measuring technology is used to control and monitor the cleanliness of used oils and to identify quality deficiencies and excessive wear in order to avoid costly machine failures.

Why the AMPC is the ideal instrument for Oil Analysis

The Automated Microscopic Particle Counter is the ideal Oil Analysis Instrument that every plant needs due to its Versatility in Analyzing Different Oil Samples. As well as the ability to operate the instrument with full automated and Minimal User Interactions. Meaning that Human Error is not a factor when completing the analysis of the oil sample.

The AMPC technology has been designed so that it limits the interference of Moisture and Air during the Analysis, therefore, leading to zero influence over the count

Minimal user interactions are required to operate the instrument
Fully Automated.
The technology used produces the most accurate particle counts as no interference from moisture and air trapped in the sample influences the count.
The algorithm programmed in the software ensures accurate and repeatable results even when the particulate contamination of the oil is high

The Benefits of the Yellotec AMPC

Are you looking for a guaranteed Particle Counter or Considering adding the AMPC to your Plant Monitoring or Machine Condition Monitoring Equipment? We have put together a list of Benefits of choosing the Fermion C1

Affordability: When running a business, you want to be as cost-effective as possible, this is why when designed the Fermion C1, we tried to keep it as affordable as possible
AMPC has the capability to analyse up to 25 sample filter grams fully automated.
This instrument and software were developed in-house to analyse used oils with contamination levels as high as ISO 4406 count of 24/23/22.
Results are automatically saved in a database file format which allows it to be imported into any LIMS system.
It is as simple as – Load samples • Enter the batch number • Press count and Move on to your next task • Return when it is done and view the accurate results
The system auto-focuses before every image is taken to maximise particle recondition for accurate sizing and counting of particles.
The system can be set up to accommodate 25mm and 47mm filter gram patches.
No intensive training is required to operate the instrument.
Save time by being fully automated.
Multi-levels of access can be set up to protect the configurable settings during routine operation
Licensing fee with updates on software included in the purchase price.
The Fermion C1 has a Robust design and is well-built.
