ATPOL III™

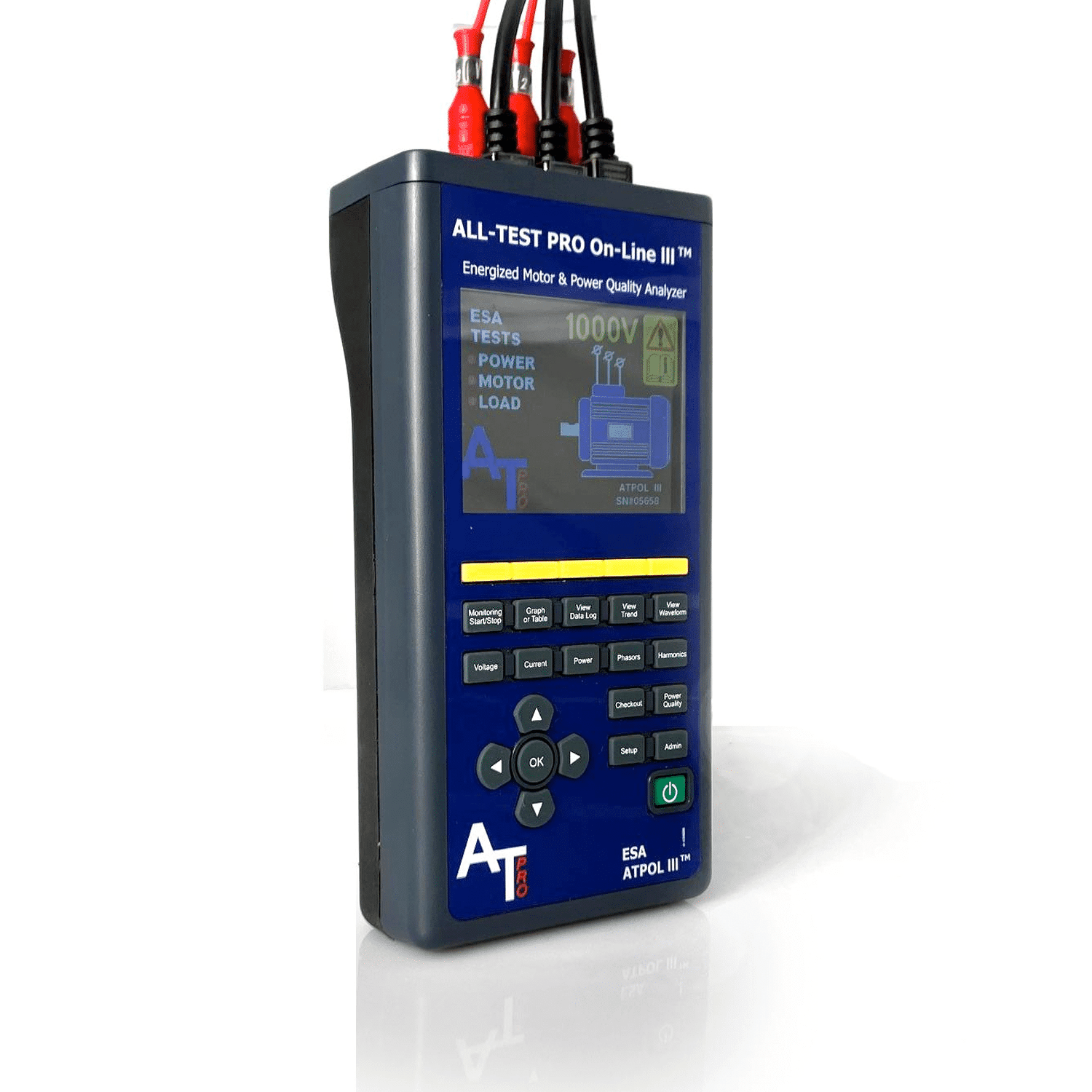

The ATPOL III™ sets the standard as the most comprehensive electrical signature and power analysis instrument tailored for AC/DC motors, generators, and transformers.

Key Features:

Superior Electrical Signature Analysis (ESA): The ATPOL III™ delivers unparalleled AC diagnostics, assessing motor health comprehensively. It evaluates electrical and mechanical rotor health, stator condition, air gap integrity, and the entire driven load, whether geared, bladed, or belted.
ESA™ Software for PC: Accompanying software analyzes and reports on both electrical and mechanical conditions of the entire motor or generator system, providing detailed insights for informed decision-making.

Applications Include:

Line frequency, running speed, and pole pass frequency analysis.
Pattern recognition for stator slot and rotor bar fault frequencies.
Automatic detection of static or dynamic eccentricity faults.
Evaluation of incoming power, including harmonics.
Efficiency calculation for AC induction and DC motors.
Power analysis, encompassing sag/swell and transient detection, along with energy consumption data logging.

Features

Enhance Your Motor Analysis:

Maximize motor performance and reliability with the ATPOL III™. Gain invaluable insights into motor health and power quality, ensuring efficient operation and minimizing downtime.

Complete Motor Health Assessment

The electrical health of all motor components is evaluated, including, but not limited to induction windings, rotors, DC field windings and armature, field and rotor coils in synchronous motors, primary and secondary windings in transformers, and all associated connections and cables.

Safe Testing

The ATPOL III™ connection accessory offers significant advantages over conventional methods for collecting energized testing data while the motor is under load. The quick connection allows for testing without opening electrical panels, eliminating the need to suit up in bulky protection gear. Safety, ease of use, accuracy, and superior diagnostic results make the ATPOL III™ the best accessory for ESA motor testing.

The Highest Standards

The ATPOL III™ has passed the highest standards for CAT III 1000V. The CAT IV 600V rating signifies it is suitable for testing at the service entrance (≤ 600V).
